Specifications:
- Dimensions: Length: 74 cm, Width: 46 cm, Height: 148 cm, Weight: 33 kg
- Physical dimensions: Length: 74 cm, Width: 46 cm, Height: 148 cm, Weight: 33 kg
- Measurement time: 0.5 to 2 seconds
- Data output: Ethernet (1), serial (2)
- Humidity: 5% to 95% non-condensing
- Measure sensor: 3D camera
- Operating temperature: 0 ̊ to 40 ̊C
- Power requirements: 100-240 VAC, 50-60 Hz

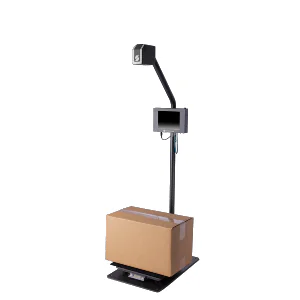

The Cubiscan 75 is an effective and affordable shipping station solution that quickly and accurately measures and weighs parcels to minimize daily shipping costs. The measurement process takes about one-second, with no specific orientation within the measurement area. Currently available in two configurations:
Cubiscan 75-C
The shipping version of the Cubiscan 75 is designed for shipping stations and other outbound applications. It also provides dimensional measurements of length, width, and height. The CS 75-C is NTEP certified in the United States.
Cubiscan 75-PF
The pass/fail system allows customers to set size parameters and produce a measurement output that indicates pass or fail.
Parcel Types: Cuboidal, boxed, and some known shapes.
The Cubiscan 75’s sturdy, low-profile frame, slim configuration, and simple design allow it to easily integrate into any shipping line or station
The Cubiscan 75 can seamlessly integrate with a barcode scanner, label printer, and shipping software to create a complete shipping/manifesting workstation. This will lead to reduced errors and fewer, costly chargebacks. This parcel cubing device also integrates easily with any existing scale.
- Color, touchscreen display
- Powerful 3D cameras
- Overhead scanning design
- Autocube technology (automatic object recognition)
- Convenient overhead design allows packages to be placed from almost any direction
- Easily integrates with shipping software, a barcode scanner and label printer to create a complete shipping/manifesting workstation
- Instantly measure boxes, tubes, custom packaging, and other shapes with precision
- No moving parts, making the Cubiscan 75 user-installable and easily maintained
- Integrates seamlessly with any existing scale
