Specifications:
- Dimensions: Length: 287 cm, Width: 313 cm, Height: 51 cm, Suspended weight: 193 kg, Recommended ceiling height:488 cm
- Operating speed: <15 seconds
- Dimensional increment: 1 cm
- Data output: .csv, .txt, .xml, .jpg file output plus FTP transfer TCP/IP nework transfer ODBC database transfer Web services
- Humidity: 0% to 85% non-condensing
- Operating temperature: -10 ̊ to 40 ̊C
- Power requirements: 95-240 VAC, 47-96 Hz, single phase
- User interface: Integrated display & keypad
- Measure sensor: Infrared laser scanners, 905 nm, class 1 (eye-safe), according to DIN EN 60825-1
The Cubiscan 1200-AKL is our largest format dimensioner. With floor, wall or ceiling-mounted configurations, pallet dimensioning just became a whole lot easier. With normal use, our customers report an ROI of three to six months, with many customers reporting payback periods of less than one month. The 1200-AKL truly is a game changer for logistics and cross-dock operations.
Parcel Types: Irregular, cuboidal and boxed items
Applications: Shipping, logistics and space management

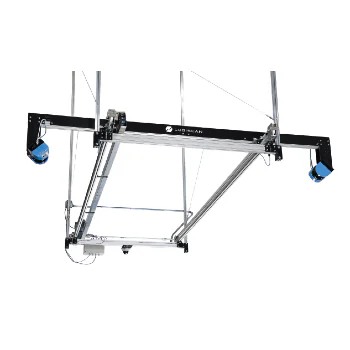

The Cubiscan 1200-AKL is a large-format scanning device designed to measure pallets and other large objects. The 1200-AKL can work in conjunction with a floor scale or as a stand-alone measurement system when weight is not required. Overhead-mounted sensors provide a comprehensive view of the freight measurement area while allowing access from any direction. Additionally, the ceiling-mounted configuration provides protection against equipment damage in high-traffic, cross-dock facilities. Freight can be measured in virtually any orientation, shape, color, or packing material.
The Cubiscan 1200-AKL utilizes Class 1 infrared laser-sensing technology that is safe for both operators and freight. Two laser scanners are fixed to parallel guides that pass over the freight–normally taking five seconds. The 1200-AKL is capable of measuring from 6″ to 8′ x 8′ x 9′ (2.5 x 2.5 x 2.75 meters) in its standard configuration. Measurement resolution is ± 0.5 inches (10mm) on length, width, and height. Larger, customized versions of the system are also available.
The CS 1200-AKL comes with a panel-mounted PC controller, touchscreen monitor, and integrated data collection software. The Cubiscan 1200-AKL can process multi-piece shipments, initiate parcel tracking tasks, and prepare DIM weight data. That data is then transferred to the customer’s WMS. A high-resolution, digital camera and special software module can be integrated to allow for convenient and reliable documentation of freight damage. Finally, the system can be programmed to work with a wide variety of floor-scale and digital display units. Barcode label scanning and printing devices can also be used with the 1200-AKL to create a turnkey cubing, weighing, and tracking workstation.
The Cubiscan 1200-AKL is a type-approved (Legal-for-Trade) dimensioning device per NTEP (US), OIML/MID (EU) and NMI (AU).
Specifications:
- Infrared light sensing technology
- Adjustable measurement capacities
- Panel-mounted PC controller
- Integrated data collection software
- Touchscreen monitor
- Can process multi-piece shipments (same-size or random-size parcels)
- Powerful sensors measure freight in any orientation and of virtually any shape, color or package material
- Ceiling mounted to provide unobstructed access for the user and protection against equipment damage
- Optional high-res camera and software available to document any freight damage
- Integrates with floor scales and digital display units
