Specifications:
- Maximum counting speed ≦1500 pcs/min
- Hopper capacity: 4000 buc
- Packing/ wrapping speed ≦ 15 packages/ min
- Packing bag size; Length:100-140mm, Width:100mm
- Operation interface: HMI
- Power requirements: AC 220-240V 50Hz
Data sheet

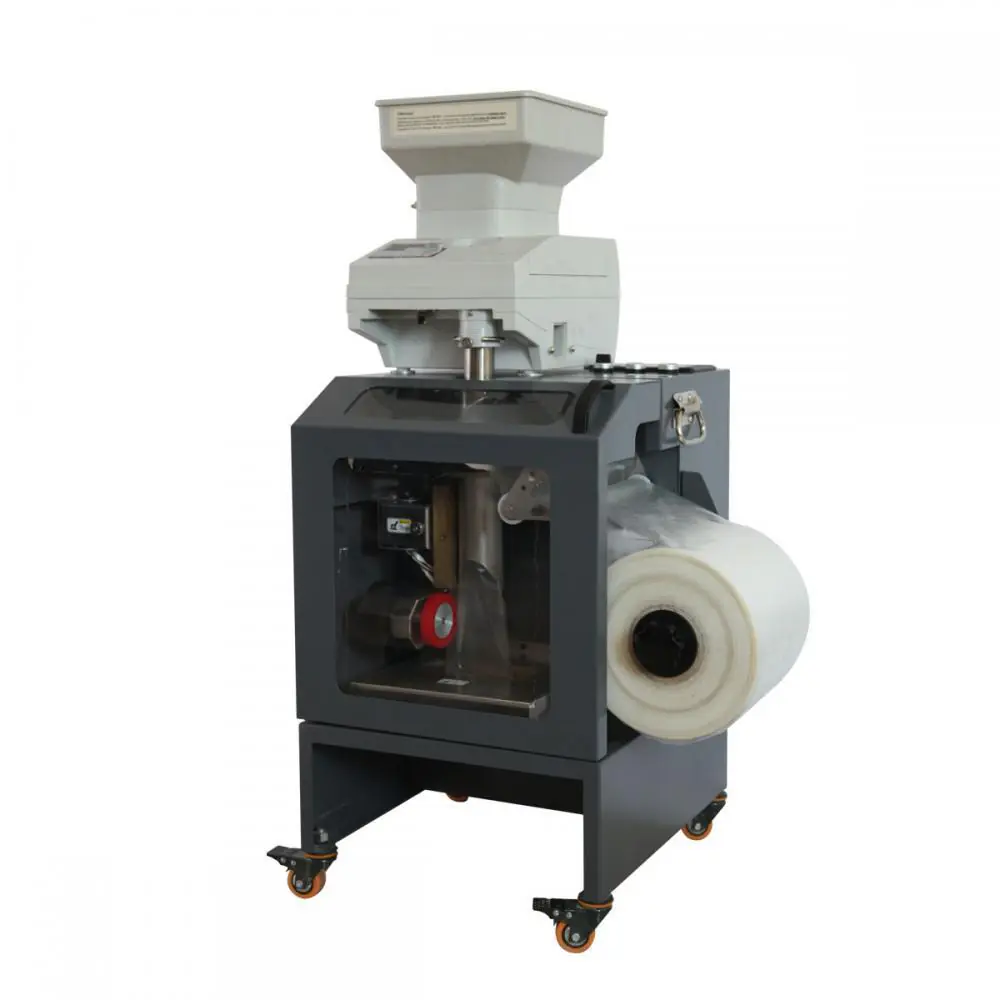

The coin sachet machine is best suited for countries with multisided coins, as they are loosely held în small plastic bank bags. This machine creates identical small clear plastic bags for any coin using a single roll of plastic film and a heated cutter. It ensures you an accurate, secure and cost-effective method of packaging large amounts of coins.
Compact Design: The design is very compact compared to traditional coin packing/coin wrapping machines; the castors enable the machine can be easily moved to any place.
Simple Operation: The user just puts the coins into the coin counter hopper and presses the START key and then the machine will pack/wrap the coins automatically.
Cost Effective: Compared to traditional packing/wrapping with paper, packing/wrapping with plastic bags are more cost effective and save on the cost of labor.
Easy Maintenance: The robust electrical and mechanical design provides easy access for cleaning and maintenance.
| Current | AC 6A |
| Power consumption | 1.2KW |
| Noise | < 70dB |
| Control system | PLC XC5-32T-E/C |
| Packing details | |
| Sachet Machine Dimension(LxWxH) | 550*450*650mm |
| Net Weight | 68.5KG |
| Transportation Packing | 1 unit/box (wooden box) |
| Box Dimension(LxWxH) | 580*560*880mm |
| Gross Weight/Box | 85KG |
