Specifications:
- Dimensions: Length: 123 cm, Width: 82 cm, Height: 98 cm, Weight: 29.5 kg
- Operating speed: <2 seconds
- Dimensional increment: 0.2 cm, Weight increment: 0.02 kg
- Data output: Serial (2), Ethernet (1), USB-A (1), USB-B (1)
- Humidity: 0% to 90% non-condensing
- Measure sensor: Ultrasonic
- Operating temperature: -10 ̊ to 40 ̊C
- Weight sensor: Load cells
- Power requirements: 100-240 VAC, 47-63 Hz, 0.15 A

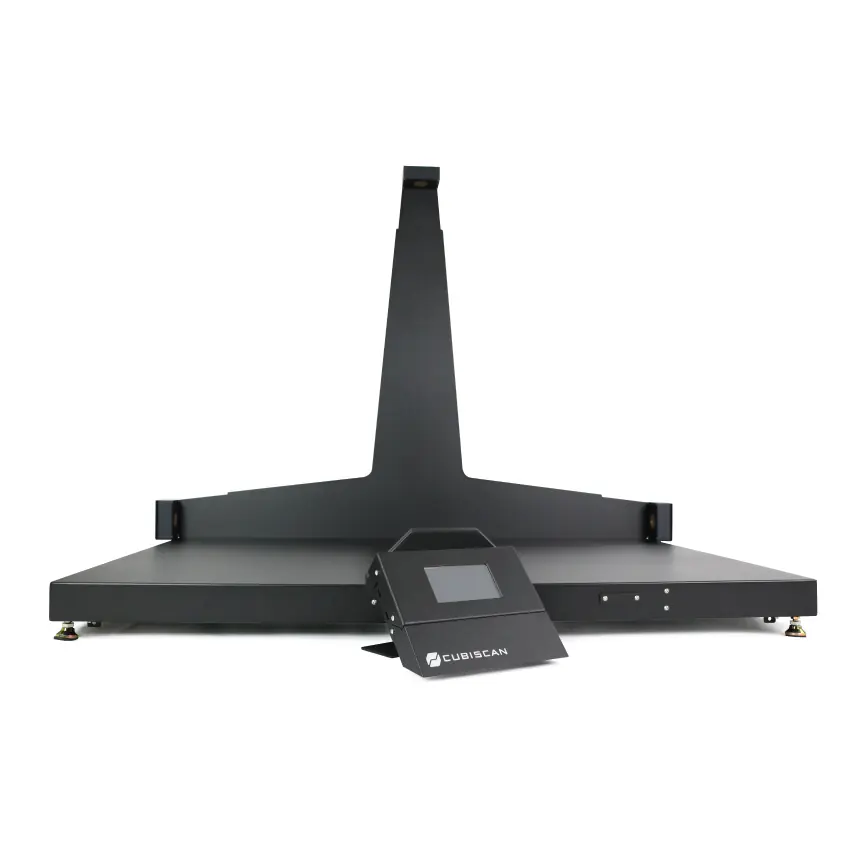

The Cubiscan 110 was built to measure and weigh parcels quickly and efficiently. The CS 110 is ideal for in-line package processing in warehouse and congested mailroom environments. It has been a tried and true solution for over 20 years. The updated firmware and touchscreen provide for a simple operating experience.
Parcel Types: Cuboidal or boxed items
Applications: Most optimal for shipping operations
Applications: Most optimal for shipping operations
The Cubiscan 110 was built to provide a flexible and ergonomic layout for maximum throughput and productivity. Side-mounted sensors on the CS 110 allow for pass-through package processing—ideal for small- to medium-size parcel manifesting and shipment auditing applications. The design of the Cubiscan 110 allows for simple package flow on and off of the volume measurement system. This configuration makes the Cubiscan 110 an ideal solution for a shipping line or gravity conveyor-fed station.
The Cubiscan 110 can be adapted to fit your specific shipping application. It can be used as a mobile, stand-alone system when deployed on a mobile cart with a portable power supply. The CS 110 can also function as a stationary dimensioner, located between a gravity conveyor for quick and efficient processing of parcels in a fast-paced manifesting or warehousing environment. The Cubiscan 110 can interface with barcode scanning equipment and label printing devices, as well as communicate directly (in batch or real-time mode) with your shipping/manifesting software or warehouse management system (WMS).
Characteristics:
- Ultrasonic sensing technology
- One-touch measuring and weighing
- Integrated digital display and control panel
- User-definable “DIM factors” for DIM weight calculations
- Unique design allows for pass-through package processing
- Designed to work with and interface to warehouse management system software
- Eliminates manual data entry and protects data integrity
- Complete mobility means easy access and use anywhere in your warehouse
- Compatible with case packing/load optimization software packages
MEASUREMENT RANGE:
- Length: 1.0 to 90.0 cm,
- Width: 1.0 to 60.0 cm,
- Height: 1.0 to 75.0 cm,
- Weight capacity: 0.02 to 50.00 kg
