Specifications:
- MEASUREMENT RANGE Length: 1.0 to 60.0 cm, Width 1.0 to 60.0 cm, Height: 1.0 to 90.0 cm, Weight capacity: 0.02 to 50.00 kg
- Operating speed: 1-2 seconds
- Dimensional increment: 0.2 cm, Weight increment: 0.02 kg
- Data output: Serial (2), Ethernet (1), USB-A (1), USB-B (1)
- Humidity: 0% to 90% non-condensing
- Measure sensor: Ultrasonic
- Operating temperature: -10 ̊ to 40 ̊C
- Weight sensor: Load cell

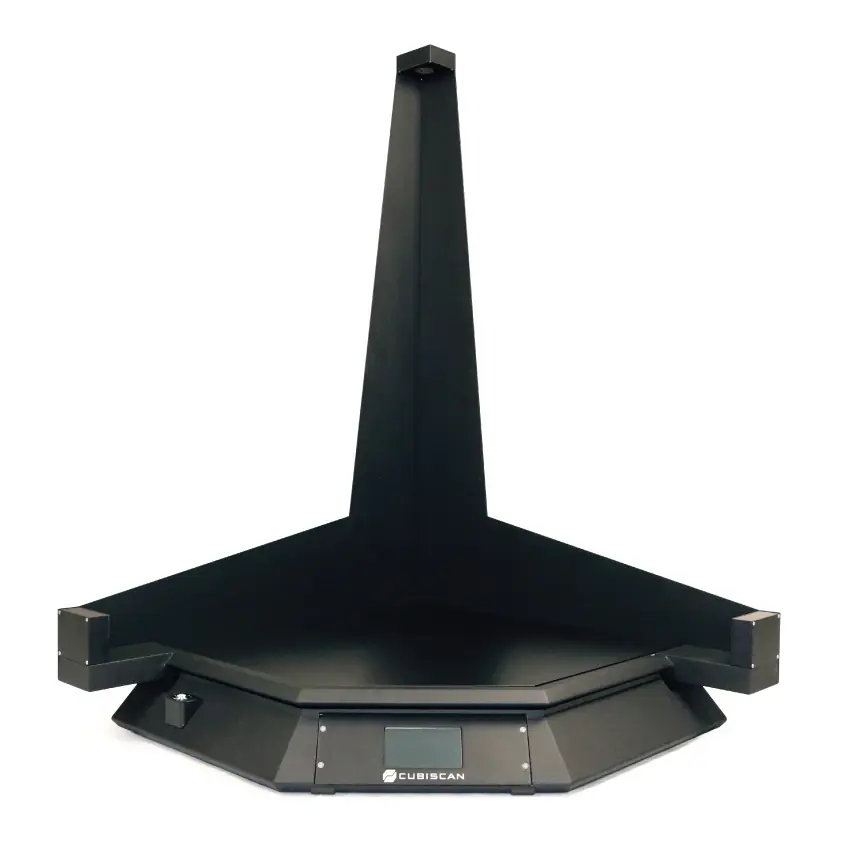

Thirty years ago the Cubiscan 100 was developed as a tool to optimize government warehouse operations. Since that time it has become the worldwide standard for dimensioning. With 6,000 installations, the Cubiscan 100 is trusted by the largest and most proficient shipping companies all over the world. Industrial grade materials and durable ultrasonic sensors make the Cubiscan 100 built to last in demanding warehouse environments.
The Cubiscan 100 is our original cubing and weighing system and pioneered the way the world thinks about dimensioning and warehouse optimization. Since 1987, the CS 100 has been a favorite of corporations all over the world. It’s built to last and with highly accurate measurement capacity, it is clear why the Cubiscan 100 continues to be one of our top sellers running on 30 years. With upgraded firmware, slimmed down sensors, and an innovative, easy-to-use touch screen, let the CS 100 change the way you manage your space.
Parcel Types: Cuboidal and boxed items
Applications: Warehousing and space management
Equipped with ultrasonic sensing technology, one-touch measuring and weighing, and an integrated digital display and control panel, the Cubiscan 100 is a very capable, LFT (legal for trade) approved dimensioning system. The design and functionality of this dimensioner is quite simple and intuitive. Its modular design allows for easy user setup and maintenance while the user-definable “dim factors” (measurement settings) provide customizable dim-weight calculations. The Cubiscan 100 is also available with a mobile cart, providing complete mobility and dimensioning capability anywhere in your warehouse.
The Cubiscan 100 is designed to work with and interface to warehouse management system software and is also compatible with case packing/load optimization software packages.
Quicker and more reliable than manual measurements, the Cubiscan 100 helps shippers by applying the correct dimensional-based shipping charges and eliminating costly chargebacks. Carriers can easily and reliably audit the freight they receive from customers.
Advantages:
- Ultrasonic sensing technology
- One-touch measuring and weighing
- Integrated digital display and control panel
- User-definable “DIM factors” for DIM weight calculations
- Graphical, 3D representation of the item being measured
