Specifications:

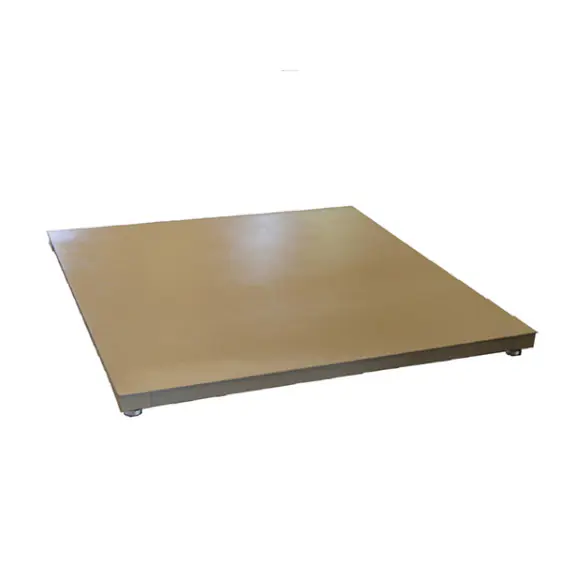

  • Platform with 4 load cells
  • Painted steel frame and plate- PEC / Stainless steel frame and plate - PEC / I
  • Protection Level: IP67
  • Adjustable stainless steel legs
  • Certified EN45501 Accuracy class III
  • Equipment according to OIML R60 CE
  • Size 1000x1000 mm - between 600kg and 1500 kg
  • Size 1250x1250 mm - between 600kg and 3000 kg
  • Size 1500x1250 mm - between 600kg and 3000 kg
  • Size 1500x1500 mm - between 1500 kg and 3000 kg

Accessories:

  •     Load cell protection cable
  •     Stainless steel ramp
  •     ATEX load cell
  •     RF transmission kit
  •     IP68 stainless steel junction box
