Specifications:
- Dimensions: 10x33x6 cm, Weight: 1,1 Kg
- Maximum Scanning Speed: 1 second per document
- It can manage documents up to A4 size.
- specifically designed to read lottery tickets
ADD TO WISHLIST
Data sheet

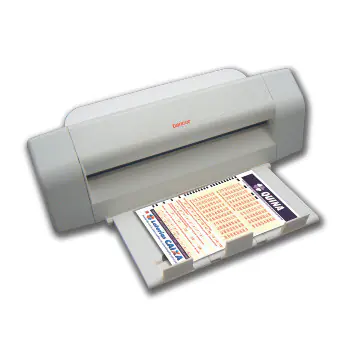

bancor bSL 210 is a device, with extremely small dimensions and a splendid design, specifically designed to quickly and correctly acquire the numbers manually marked by players on lottery tickets.
BENEFITS:
-
Optimization of lottery tickets management processes from every states of the world
-
Managing of the data contained within the lottery tickets quickly, securely and effectively
-
Easy insertion of a new device with an attractive design in pre-existing workstations
-
Better Client Experience thanks to an immediate management of the tickets
-
And many others…
Dimensions & Weight: The smallest in its market, compactness and lightness are two key features:
Managed documents:
-
Lottery tickets
-
Any model to be verified marked with Optical Mark Recognition
Document specifications:
-
Maximum size: A4, 21 x 29,7 cm (8,26”x11,81”)
-
Minimum size: A10 2,6 x 3,7 cm (1,02”x1,45”)
-
Thickness: 70-120 gr/m^2 (5 -79 lb)
Optimized electronic management: Images, documents and related data, can be easily transmitted in real time to your system and / or stored in a data base
Image quality: Resolution is automatically optimized according to data decoding.
-
Contact Image Sensor (CIS), only Front
-
Resolution:
-
Grayscale: 256 levels, up to 200 dpi
-
-
Image format: Tiff (G3,G4), Jpeg, Bmp e Pdf
-
Autocrop: automatic removal of borders
-
Auto deskew: automatic rotation
-
Rotation
Technical specifications:
-
Scanning Speed: 1 second per document (B/W or grayscale @ 200dpi)
-
Power Consumption: 20W or less (sleep: less than 3W)
-
HW Interface: USB 2.0 (compatible USB 1.1)
-
SW Interface: TWAIN, bancor SDK-API
-
Power: external 24V 100 – 240 VAC, 50-60 Hz
-
Operating conditions: 10°-50° C, 0-80% U.R.
-
Operating Systems (32 e 64 bit): Windows® 8.x, Windows® 10.x; Android 7.1 or upper, Linux
Software:
-
bancor Console for document management and decoding
-
bancor OMR to recognize different types of Marks and signs in cells
Optional: Receiving tray
Certifications: UL / CAS / FCC Class B / CE
Environmental sustainability: energy star, WEEE and RoHS
