Specifications:
- scanner for processing information, images from paper documents and rigid, plasticized documents
- Contact Image Sensor (CIS) for dual side image capture;
- Resolution: up to 600 dpi
- Image format: Tiff (G3,G4), Jpeg, Bmp e Pdf
- Double feeding detection

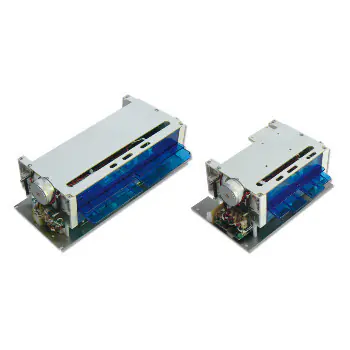

A new "ATM reader"
With more than thirty year of experience in the field, bancor releases a new series of ATM readers: BSC A4 and BSC A6 are devices with a new and revolutionary performance for and automatic electronic management of documents directly at your kiosk, self-service systems or ATM with retract functionality of documents.
Optimized Electronic Management
Images, documents and related data, can be easily transmitted in real time to your system or stored in a data base.
Our BSC readers satisfy the high market standards in terms of quality, reliability and performance.
Specifically designed for:
• Banking documents, checks, bills, coupons, etc..;
• Proxies; bank deposit slips, post office deposit slips, ID cards, driving licenses, rigid cards, plastic-coated documents;
• And many more…
Image Quality: Resolution is automaticaly optimized according to data decoding.
• Contact Image Sensor (CIS) for dual side image capture;
• Resolution: - Grayscale: 256 levels, up to 600 dpi - Color: 24 bit, up to 600 dpi
• Image format: Tiff (G3,G4), Jpeg, Bmp e Pdf.
• Autocrop: automatic removal of borders
• Auto deskew: automatic rotation.
• Rotate: Rotation
• Double feeding detection
Maintenance- bancor cleaning KIT with a specific procedure.
MTTR extremely reduced thanks to easy accessibility to all components
Dimension & Weight
Extremely light and compact:
BSC A4 BSC A6
HxLxW [mm]* 70x310x110 70x200x110
Weight 2.3 Kg (5.07 P) 1.7 Kg (3.75 P)
Document Specification BSC A4
• Maximum size: A4 21 x 30 cm
• Minimum size: 8.5 x 7.0 cm
• Thickness: 18-300 gr/m^2
Document Specification BSC A6
• Maximum size: 11 x 30 cm
• Minimum size: 8.5 x 7.0 cm
• Thickness: 18-300 gr/m^2
Reading Font (optional)
• CMC7,CMC0, E13B, OCR A, OCR B, OMR
• Linear and Bi-dimensional Bar Code: PDF417, EAN8, EAN13, 39, 25, 128, 93, UPCA, UPCE, CODABAR,
• bancor API for ICAO passports and ID documents
• bancor Console for document management and decoding
• bancor F24Easy to read Italian F24 tax module integrated with Auriga
• bancor Microhole to read microperforation
Technical Specifications
• HW Interface: USB 2.0 (compatibile USB 1.1), LAN network interface
• SW Interface: bancor SDK-API
• Power: from 100 to 240 VAC, 50-60 Hz.
• Operating conditions: 10°-40° C, 0-80% R.H.
• Jogger system (Hardware Automatic aligning paper feeding)
• Double feeding detection
• Operating Systems (32 & 64 bit): Windows® 2000, Windows® XP, Windows® Vista, Windows® 7, Windows® 8, Windows® 10, CITRIX Ready, LINUX
• XFS/WOSA 3.2 standard integrated with Auriga
Additional Options
• 96 dpi inkjet Printer
• 300 dpi inkjet Printer
• MICRO HOLE technology
• MICR (only on BSC A6)
• Front introducer with flashing lam (customs color on request)
